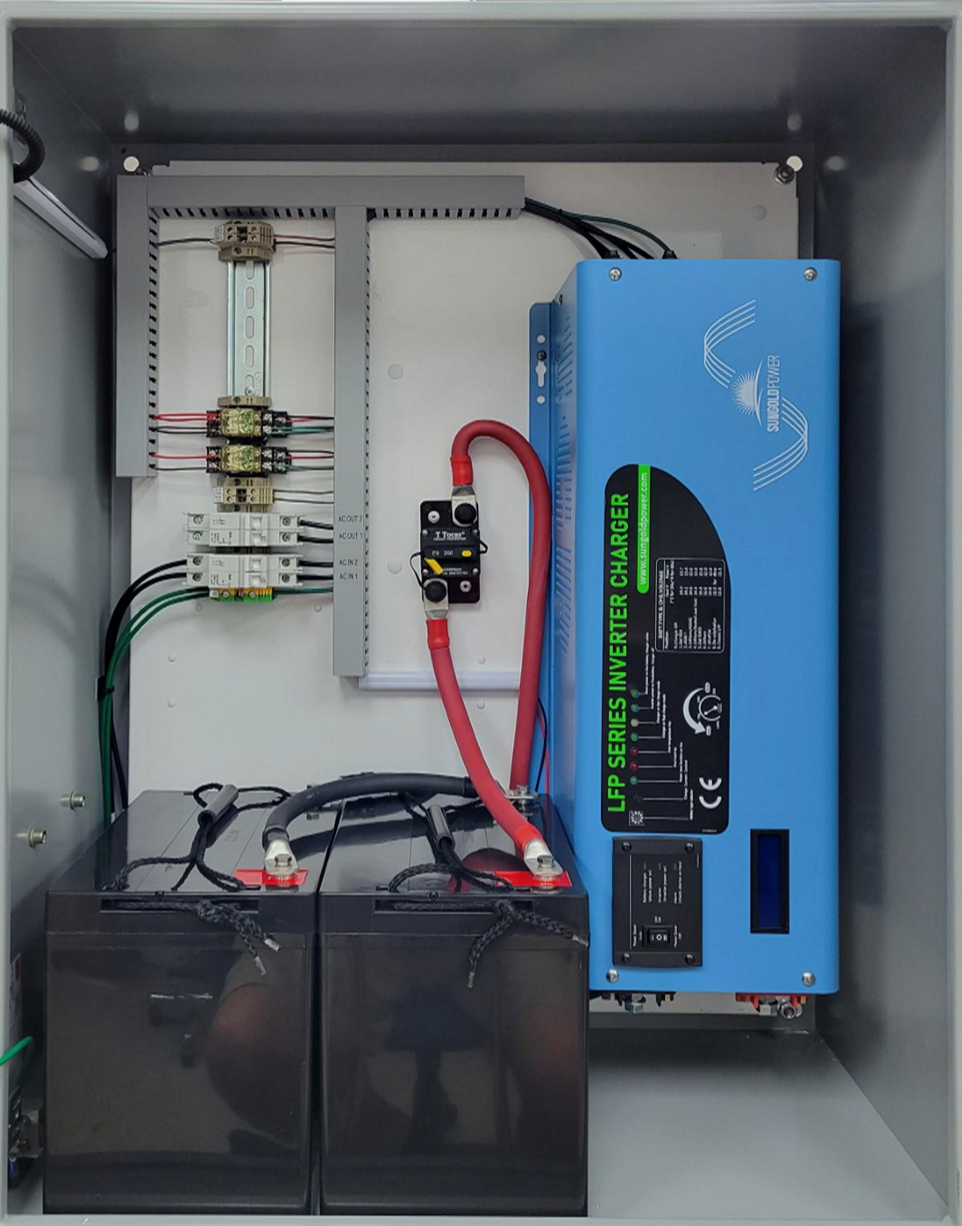

The V UPS provides instantaneous back-up power, for Model VM 1220 Gate Operator and other electrical equipment, for continued operation during power outages.  The V UPS is a versatile uninterruptable power supply that uses single phase 208-230 VAC 50/60Hz input power and produces a pure sine wave output of 120/230 VAC.

Provides up to 3,200 linear feet of gate travel when used with Model VM1220 gate operator. *

• 4,000 watts continuous power output
• Includes Two 12 Volt 75 ampere hour, deep cycle sealed AGM batteries
• 120VAC Duplex power outlet
• Door mounted led panel light illuminates when operating on batteries
• Dry relay contact output for remote monitoring when operating on batteries
• Designed for outdoor and indoor use
• Optional equipment and finishes include NEMA 4X 316-Stainless Steel enclosure, heater kit and thermal insulation.

*Test Conditions:  Model VM1220 automated cantilever gate (ASTM Type II, Class 2) aluminum, 20' opening, 30' overall length.  50% operating speed, 1 cycle (open/close) per minute.  Ambient air temperature 70 degrees.
